fork()函数
#include <unistd.h>
// 参数 : void
// 返回值: pid_t 创建的子进程ID
pid_t fork(void);
返回值:fork()
返回值会返回两次,分别在父进程和子进程中返回。
- 在父进程中返回子进程的ID,在子进程中返回0。所以可以通过
fork
的返回值来区分父进程与子进程。 - 在父进程中返回 -1 ,表示创建子进程失败,并设置
errorno
。如下面两种情况导致创建失败:- 当前系统的进程数已经达到了系统规定的上限,这时
errno
的值被设置为EAGAIN
- 系统内存不足,这时 errno 的值被设置为
ENOMEM
- 当前系统的进程数已经达到了系统规定的上限,这时
程序实例
#include <unistd.h>
#include <stdio.h>
int main() {
pid_t cld_pid;
int a = 1, b = 2;
for (int i = 0; i < 2; i++) {
if ((cld_pid = fork()) == 0) {
a += 1;
printf("a=%d b=%d\n", a, b);
} else {
b += 1;
printf("a=%d b=%d\n", a, b);
}
}
return 0;
}
执行过程:

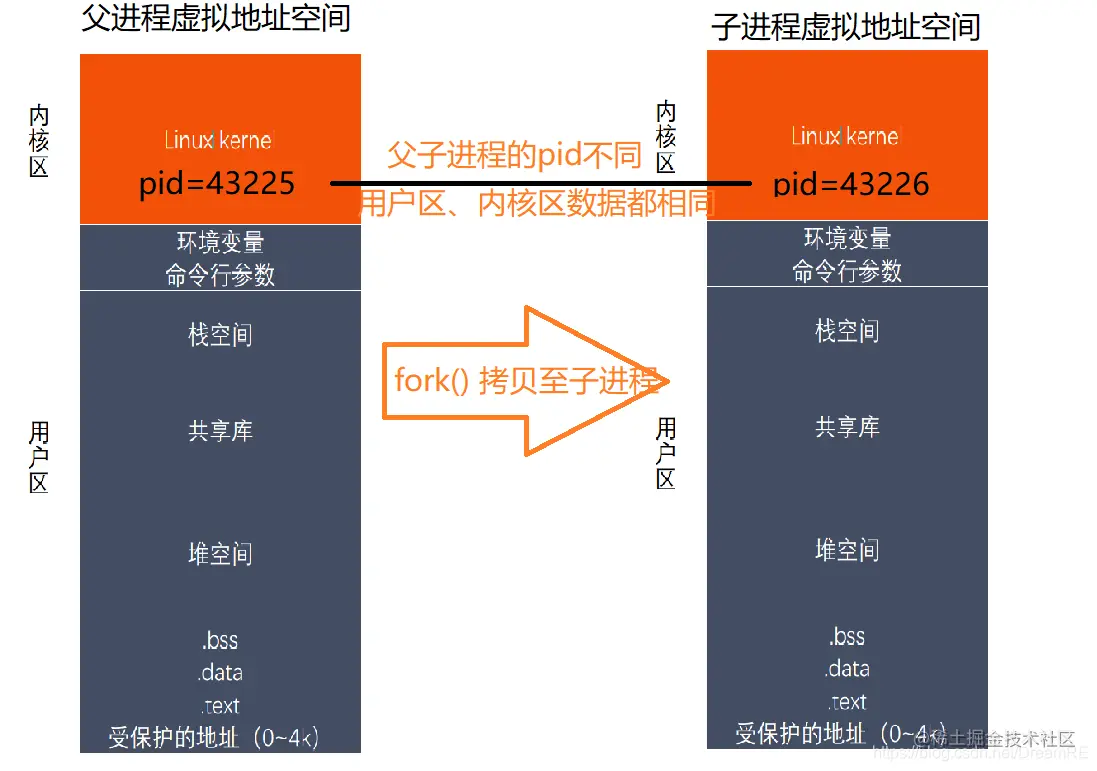

原理
Linux的fork
是通过写时拷贝(Copy On Write)实现的。在执行fork语句后,内核不是复制一份父进程的整个地址空间,而是父子进程共享父进程的地址空间。在父进程或子进程进行写操作时,子进程才复制一份地址空间,从而使得父子进程拥有自己的虚拟地址空间,在自己的地址空间进行写操作。
对于文件资源,fork之后的父子进程共享文件,fork之后的父进程与子进程的文件描述符表指向相同的文件表,引用计数增加,共享文件偏移指针。
fork引发的死锁问题
fork函数在创建子进程时,如果原进程为多线程进程,则只会复制当前线程,不会复制其他线程。
现在有这样一个问题: 该程序有个全局对象sGlobalInstance,父进程先通过该对象执行了lock操作,然后执行fork,在子进程中,也去执行lock操作。
#include <errno.h>
#include <pthread.h>
#include <stdio.h>
#include <stdlib.h>
#include <sys/syscall.h>
#include <unistd.h>
class Test {
public:
Test() {
pthread_mutex_init(&mMutex, nullptr);
printf("Init test instance pid:%u tid:%u\n", getpid(), gettid());
}
~Test() {
pthread_mutex_destroy(&mMutex);
}
void lock() {
pthread_mutex_lock(&mMutex);
}
void unlock() {
pthread_mutex_unlock(&mMutex);
}
private:
pthread_mutex_t mMutex;
};
static Test* sGlobalInstance = nullptr;
void* func(void* arg) {
if (sGlobalInstance == nullptr) {
sGlobalInstance = new Test();
}
printf("Before get lock pid:%u tid:%u\n", getpid(), gettid());
sGlobalInstance->lock();
printf("After get lock pid:%u tid:%u\n", getpid(), gettid());
pause();
return nullptr;
}
int main() {
printf("In parent process. pid:%u tid:%u\n", getpid(), gettid());
sGlobalInstance = new Test();
pthread_t id;
pthread_create(&id, nullptr, func, nullptr);
// Sleep to make sure the thread get lock
sleep(1);
int pid = fork();
if (pid < 0) {
printf("Error occur while fork. errno:%d\n", errno);
return errno;
} else if (pid == 0) {
// In child process
printf("In child process. pid:%u tid:%u\n", getpid(), gettid());
func(nullptr);
} else {
// In parent process
pause();
}
return 0;
}
上面程序的执行结果如下:子进程没有拿到锁,产生了死锁。
In parent process. pid:22287 tid:22287
Init test instance pid:22287 tid:22287
Before get lock pid:22287 tid:22288
After get lock pid:22287 tid:22288
In child process. pid:22293 tid:22293
Before get lock pid:22293 tid:22293
从执行流程看,该全局变量只在父进程中被初始化了一次,此时已经加上锁了。由于fork的cow机制,此时子进程中该变量也是加锁了的,当父进程对该变量进行解锁时,操作系统会复制一份进程中的资源,导致子进程中该变量仍是加锁了的。
解决方式:
pthread_atfork
函数可以用来处理这种情况,该函数原型如下:
- 回调函数prepare在fork前调用
- fork后在父进程中调用回调函数parent
- fork后在子进程中调用回调函数child
int pthread_atfork(void (*prepare)(void), void (*parent)(void), void (*child)(void));
fork之后的父子进程执行顺序问题
进程的执行顺序是要看操作系统如何进行进程调度的,具体看调度算法。
如果fork之后先调度父进程,此时父进程在cpu中处于活跃状态,无需进行进程切换操作,能提高性能。
如果fork之后先调度子进程立即exec(进程切换?)的情况,此时所有的父进程页面会因为cow进入保护状态。由于父进程有倾向继续修改内存页和栈页,所以需要为子进程复制一份页面,此时有发生页中断的潜在危险,对于子进程来说,它未必需要父进程的页面。此时如果先执行子进程做exec,就可以省去很多拷贝页面的过程。 如果需要强制子进程先运行的话可以使用vfork。
